ACTIVE WELDING SYSTEM - AWS3

Integrated weld system including weld head servo motor control, weld process monitoring and analysis; optimized for automation with maximum quality requirements.

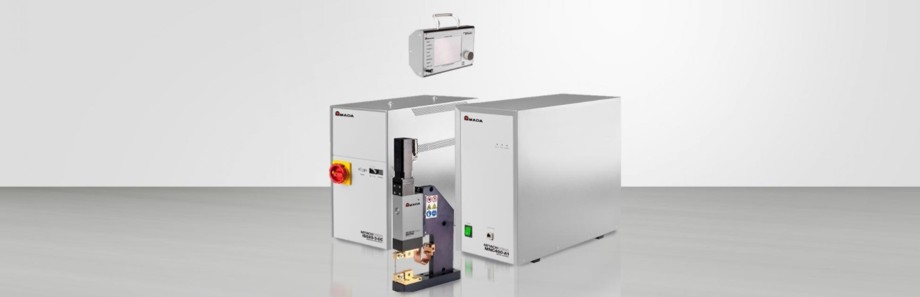

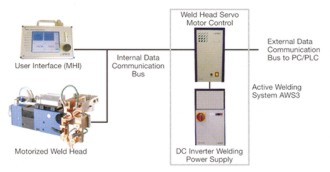

AWS3 Active Welding System controls the ISO DC inverter welding power supply family as well as the motorized weld heads and pincers. It can be easily integrated into machines and existing systems using its bus interface. AWS3 is a complete solution providing process control, process monitoring and quality analysis all in one.
The multi-lingual user interface as well as the operating concept is highly straightforward and has an intelligent design: status line, menu bar and interactive user guide with context help make using the system very easy. Another AWS3 advantage is the combined CF/MD interface (CompactFlashTM, MDTM) for storing parameters, system configurations, data logging, screenshots and waveforms

Integrated Process Control
AWS3 offers integrated process control for all electrical and mechanical welding parameters, i.e. for current, voltage, power, weld time, force and distance. The quality of the welding process is considerably improved thanks to a special speed-optimized digital parameter control.

Easy programming of current and force profiles
High speed digital control of electrical and mechanical welding parameters
Bus interface (CANopen, Profibus) for bidirectional data communication
- Parameters (recipe management)
- Measuring data
- Measuring waveforms
- I/O status

Integrated Monitoring
Production monitoring of AWS3 is realized trough data logging, static and dynamic monitoring, troubleshooting, fault tracking and statistical process control (SPC). Process stability can be analyzed using histogram and run-chart screens.

Static process monitoring (numeric limits)
Dynamic process monitoring (envelope functions)

Integrated Quality Analysis
Reliable quality assurance is guaranteed by reference waveform management and process analysis with SPC.

Statistical process control (SPC) with histogram and run-chart screens for analyzing process stability
Automatic SPC-based calculation of monitoring limits
Graphical display and analysis functions

Operator Panel
The AWS3 operator panel is very user friendly due to the one-button toggle wheel concept. It features a graphical color display, status LED.

User configurable run screen
Screenshot function
